Overview

The I-35/Highway 53 interchange in Duluth, MN (known locally as the “Can of Worms”) is one of the busiest in the region with over 72,200 vehicles/day and intense congestion given the volume of traffic from commuters and the shipping activities of the Duluth Port Terminal. This project was the survey-grade mapping needed to begin the process of a $240M re-design and construction project.

Axim Geospatial was called upon by the Minnesota DOT to provide high-accuracy mapping for this project. To optimize efficiency and modeling quality, Axim performed a complex data fusion project that included both survey-grade mobile and helicopter lidar. The mobile lidar provided a survey-grade model of the road surface, while the helicopter aerial lidar and imagery provided orthophotography and a highly accurate surface for the right-of-way.

Duluth-Can-of-Worms-Ramp-1536x674Due to the traffic volume, it was deemed too dangerous and inconvenient to close ramp lanes. Without the buffer of closed lanes, surveyors placing control points for the mobile lidar would be put at grave risk. In lieu of that control, Axim elected to use the highly accurate helicopter lidar data as a means of developing control points. Project analysts selected desired ground control locations then used the helicopter lidar to get an elevation for the point. After ground control had been set (using manual survey in safe areas and helicopter lidar derived surveys in hazardous), Axim completed the mobile lidar acquisition. Each lane of the project area was driven collecting lidar and imagery. The mobile lidar data was calibrated and compared to the aerial lidar for a quality check.

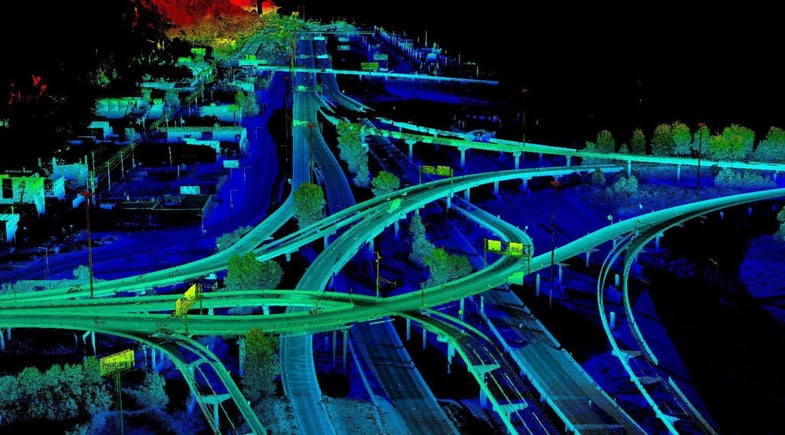

Duluth-Can-of-Worms-Interchange-1536x853-1

The mobile lidar was used to form a digital terrain model for the roadway. Breaklines were manually extracted from the lidar, much as in photogrammetry, to enhance the model’s accuracy. The helicopter lidar was used to provide a digital terrain model for the area off of the road edge. Its mission also provided orthophotography. The project resulted in a high accuracy digital terrain model (within 0.10’ on hard surfaces) that provided information instrumental to MnDOT engineers as they tackle the design and construction of a new interchange.
